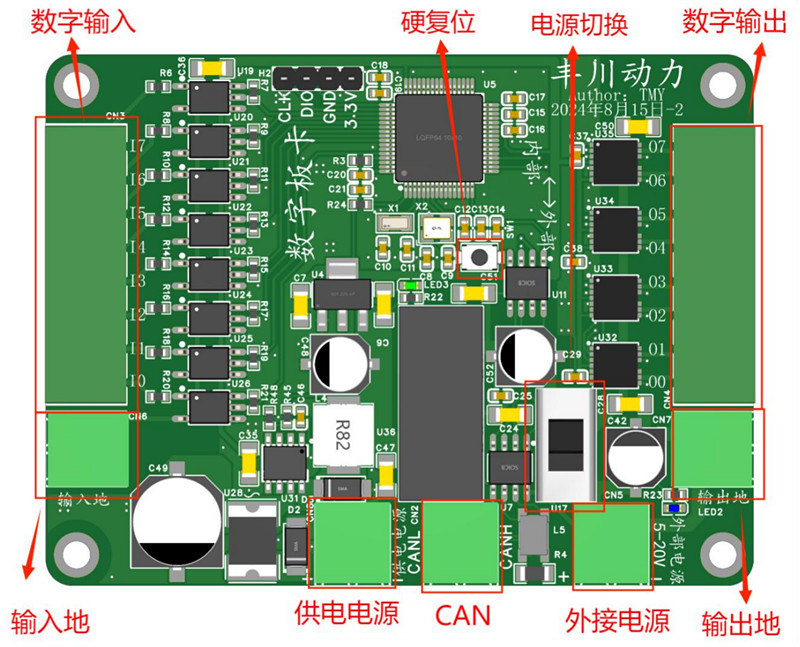

Main Parameters of Digital Test Board

Power Supply

Supply voltage from 6V to 32V and supply current greater than 1A. Input channels accept voltages from 3.3V to 12V, and output channels can be powered by an internal 5V isolated power supply or an external 7V to 25V power supply.

Input

8 input channels capable of measuring signal period, positive pulse width, and negative pulse width. Supports a maximum period of 429 million microseconds and a minimum pulse width of 10 microseconds, with a measurement accuracy of ±6 microseconds.

Output

8 output channels supporting two independent ABZ encoder signal outputs and two independent PWM outputs. Output channels can output PWM signals up to 1MHz and encoder signals up to 600KHz.

RS485

Control and read board parameters such as input capture channels, capture data, output encoder signal frequency, and phase via RS485. Supports query-response mode and power-off memory function.

CAN

Control and read board parameters such as input capture channels, capture data, output encoder signal frequency, and phase via FDCAN or CAN2.0B. Supports power-off memory function.
